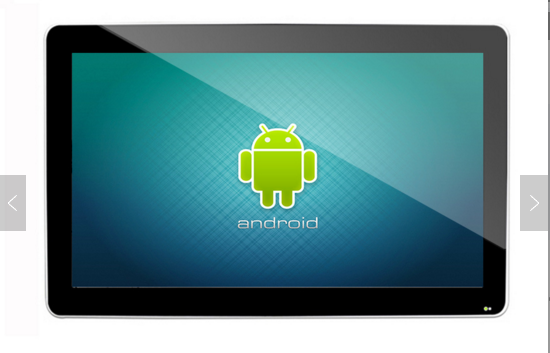

AD Interactive Stand Alone Digital Signage Toughened Glass Panel HD AC110V-240V

Brand Name : ADW

Model Number : AD-4740

Place of Origin : China

MOQ : 1

Price : USD250~USD400/pc

Payment Terms : T/T, Western Union

Supply Ability : 10000 pcs per month

Delivery Time : 30 days

Packaging Details : 1pc/color box, 2pcs or proper qty in a carton by customer request

CPU : RK3188 or Rockchip 3288

Ram : 1GB or 2GB

Rom : 8GB or 16GB

resolution : 1920*1080P

Material : metal

OS : Android 4.4 or 5.1

WIFI : 802.11 b/g/n

4G LTE : optional

Contact Now

47 Inch AD Player Toughened Glass Panel HD Wall Mount Digital Signage

· Place of Origin: Guangdong, China (Mainland)

· Brand Name: ADW

· Model Number: DDW-AD4740SL

· Type: TFT

· Application: Indoor

· Panel Size: 47 Inch

· Max Resolution: 1920x1080

· Viewing Angle: 178x178

· Pixel Pitch: 0.76125x0.76125mm

· Color: 8Bit,16.7M

· Contrast Ratio: 4000:1

· Brightness: 500cd/m2

· Response Time: 5ms

· Input Voltage: AC110V-240V,50/60HZ

· surface: anti-glare

· panel backlight: CCFL

· control method: RS232 control

· consummtion: 180W

· signal support: DVI/HDMI/VGA/AV/YPBPR

· Color system: PAL/NTSC/SECAM

· Operation System: Android

· Menu language: Multiple languages

motherboard specs

CPU	Rockchip RK3188 Quad core Cortex-A9 GPU Mail-400 @ 533MHz
Frequency	1.6 GHz
RAM	DDR3 2G Optional
Rom	NAND FLASH 8GB
DIF	LVDS interface(Single, 6-way, 8-way dual).Support maximum resolution 1920x1080, support 7 "-82" display.
Onboard backlight	12V
LCD voltage	3.3V/5V/12V optional
Touch screen	Provide I2C interface (can support multi-point resistance touch, multi-point capacitive touch). Support USB multi-point infrared touch, multi-point sound saw touch, multi-point optical touch.
Network	Have RJ45 interface,support Ethernet.
Network	Have wifi&BT module,support Wi-Fi 802.11b/g/nprotocol.Support BT3.0/BT4.0
Image rotation	Support 0 degree,90 degree,180 degree,270 degrees manual / automatic rotation, support gravity sensing function.
Real Time Clock	Built-in real-time clock powered battery
Interface device	Support DVP interface camera, the maximum support 500W pixels
	Support USB camera
	3 USB HOST (1 motherboard, 2 small board), 1 USB OTG
	1 group serial port. Support external serial device module (3G module, NFC module, printer, card reader, etc.)
	1 group of I2C ports
	SD card, maximum support 32GB
	D class large built-in speaker, 8 oh / 3W
	Support for microphones
Audio	MP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
Video	Support H.264,VP8,RV,WMV,AVS,H.263,MPEG4 video formats such as 1080P decoding, YouTube and other online video, up to 1080P, HTML5 video playback, Flash 10.1 play
Picture	Support JPG, BMP, PNG and other picture formats to browse and support the rotation / slide show / picture zoom
Power Adapter	Input AC100-240V.50-60HZ, output:DC12V 3A

AD Interactive Stand Alone Digital Signage Toughened Glass Panel HD AC110V-240V

Sunchip is providing services & solutions in ARM board and digital signage. We are specializing in OEM&ODM service.
